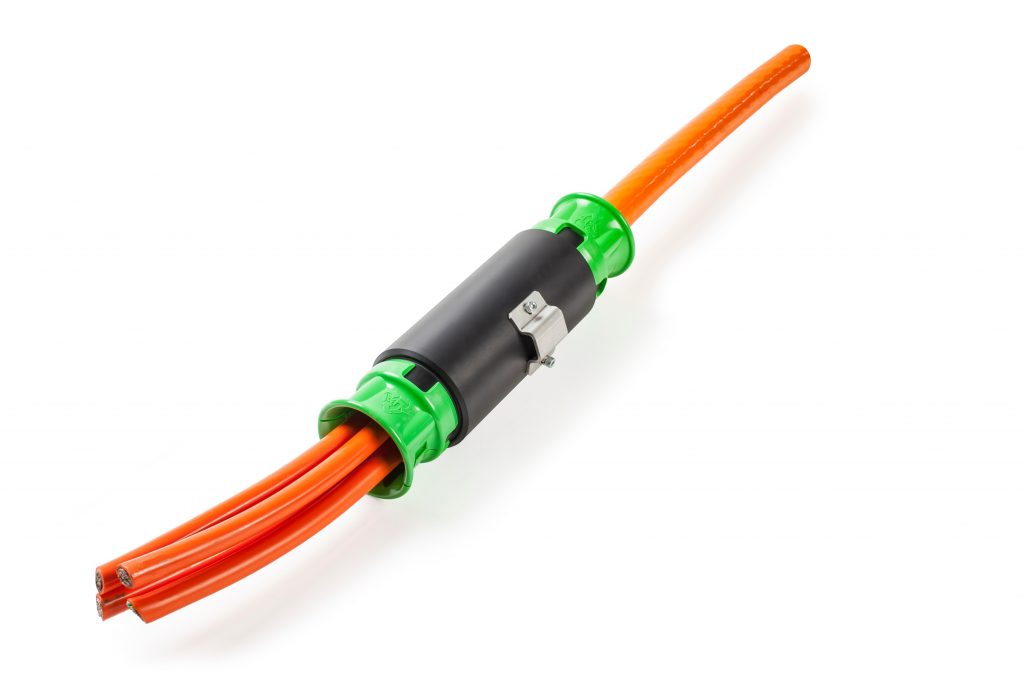

Plane Power PJS400 Junction Sleeve
The Plane Power PJS400 Junction Sleeve (4oo Hz) is designed to connect composite cable to multi core cable.
- Ideal for use with cable retrievers / reelers
- Provides safe and robust connection of different cable types
- Power supplies using composite cable can be joined to more flexible stranded cable at the connector end
- External components manufactured from impact resistant, thermally stable and chemically resistant polymers
- Configurable bungs to suit industry standard cables
- IP66 & IP67 rated (filler not required)

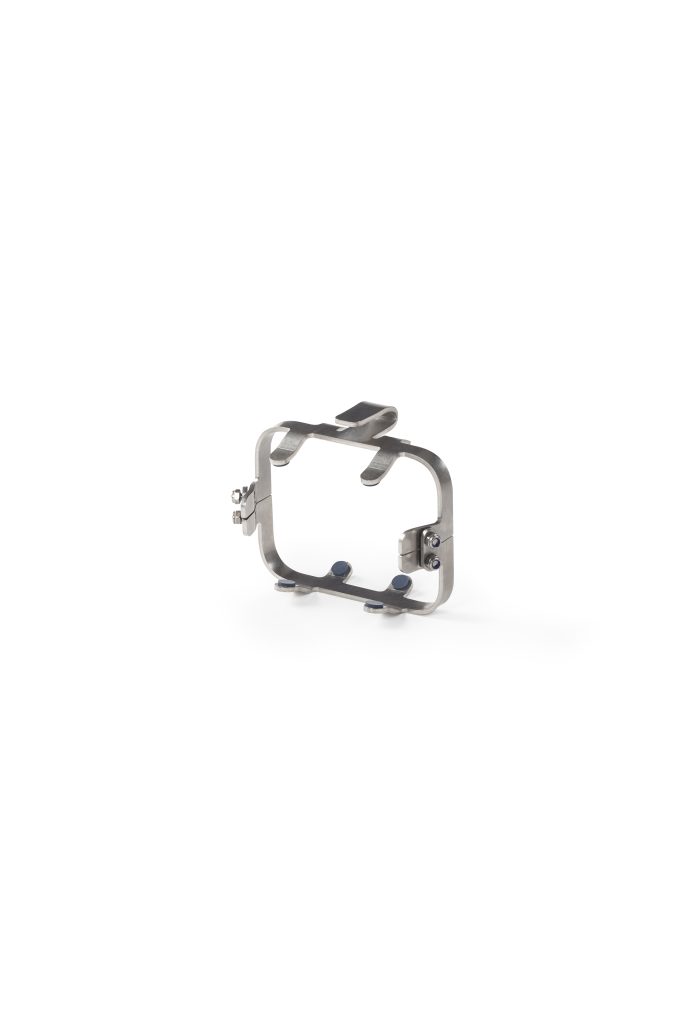

- Exohook supplied with the PJS400
- Nominal voltage: 115/200 V, 400 Hz
- 450 A (power), 35 A (control)
- Current overload: 1500 A for 1 min (power)
- High voltage test: 4000 V
- Operating temperature of -25°C to +90°C
- Weight – 1.7 kg (without cable and fill)
- Configurable bungs to suit industry standard cable
Designed to connect composite cable to multicore cable. Ideal for use with cable retrievers /reelers.
Features and Benefits
- Ideal for use with cable retrievers / reelers
- Provides safe and robust connection of different cable types
- Power supplies using composite cable can be joined to more flexible stranded cable at the connector end
- External components manufactured from impact resistant, thermally stable and chemically resistant polymers
- Configurable bungs to suit industry standard cables
- IP66 & IP67 rated (filler not required)
- Exohook supplied with the PJS400
Range
- Nominal voltage: 115/200 V, 400 Hz
- 450 A (power), 35 A (control)
- Current overload: 1500 A for 1 min (power)
- High voltage test: 4000 V
- Operating temperature of -25°C to +90°C
- Weight – 1.7 kg (without cable and fill)
- Configurable bungs to suit industry standard cable
Applications
Designed to connect composite cable to multicore cable. Ideal for use with cable retrievers /reelers.
