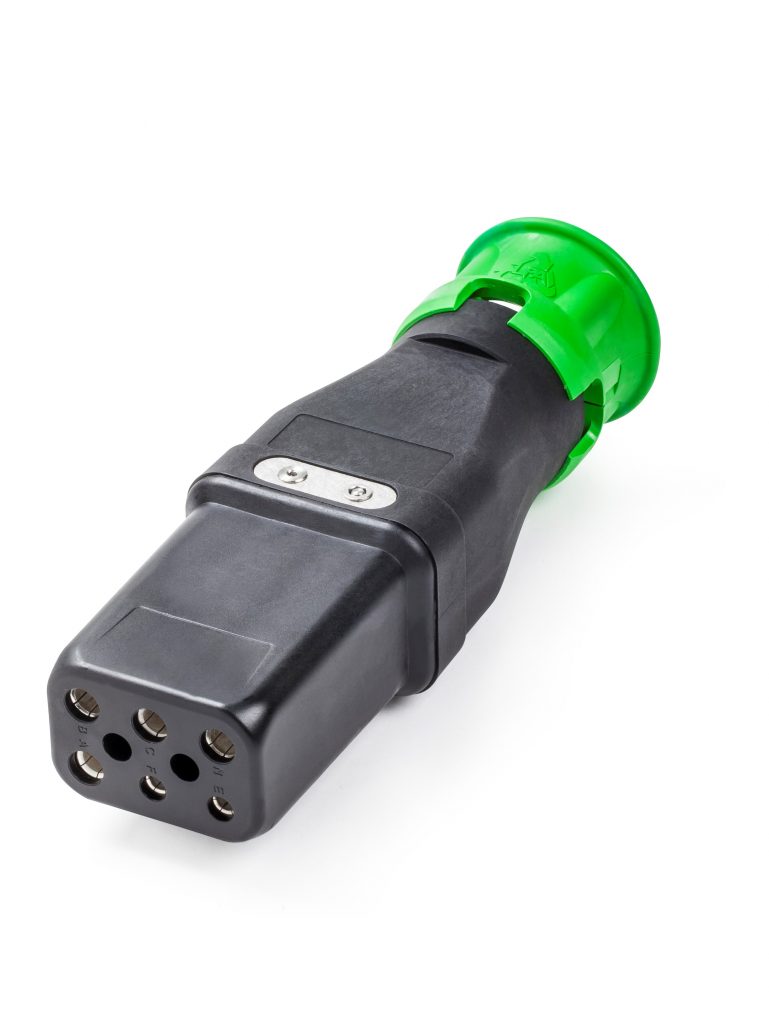

Plane Power P400 Aircraft Connector

Plane Power P400 Aircraft Connector

Plane Power P400 400Hz aircraft connector with fixed electrical contacts – providing a cost-effective connection system to power aircraft

  • Easy connection to cable
  • Low maintenance
  • Impact resistant

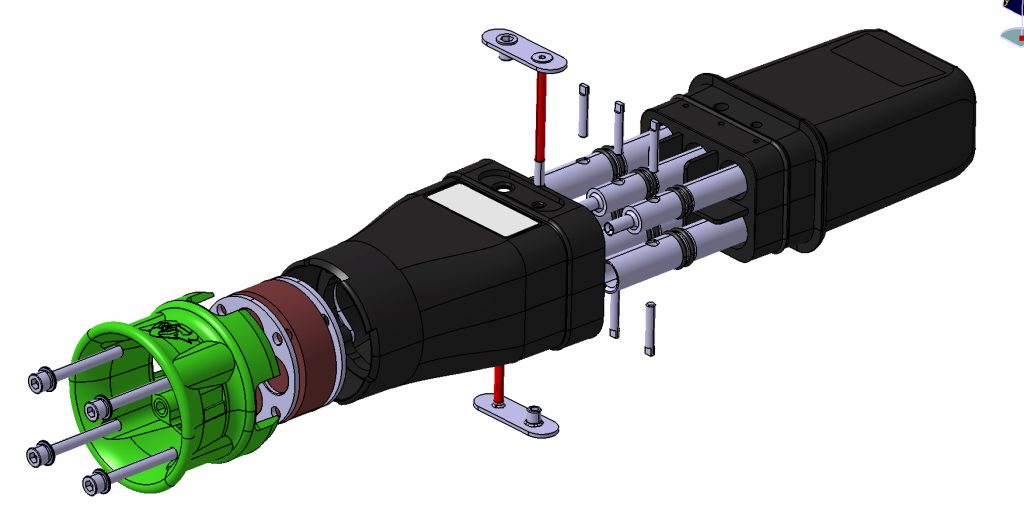

  • Replaceable handle/strain relief system
  • Suitable for a wide range of composite and single core 400Hz cables
  • IP67 rated

The external components of the connector are manufactured from impact resistant, thermally stable and chemically resistant thermoplastics.

The Plane Power P400Hz aircraft connector will be available from spring 2020.

Technical features:

  • High conductivity silver plated copper contacts
  • Connector sealed to IP67
  • Filler not required to seal the connector
  • Impact resistant

Technical specification:

  • Nominal voltage: 115/200 V, 400Hz
  • Operating temperature: -25 to +90 C
  • Weight: 2.45 kg
  • Applicable standards: ISO 461-2, BS 4G 173-1, VG 96966-1, MIL-C-794D
  • Connection of 400Hz ground power supply to aircraft

Features and Benefits

  • Easy connection to cable
  • Low maintenance
  • Impact resistant
  • Replaceable handle/strain relief system
  • Suitable for a wide range of composite and single core 400Hz cables
  • IP67 rated

The external components of the connector are manufactured from impact resistant, thermally stable and chemically resistant thermoplastics.

The Plane Power P400Hz aircraft connector will be available from spring 2020.

Range

Technical features:

  • High conductivity silver plated copper contacts
  • Connector sealed to IP67
  • Filler not required to seal the connector
  • Impact resistant

Technical specification:

  • Nominal voltage: 115/200 V, 400Hz
  • Operating temperature: -25 to +90 C
  • Weight: 2.45 kg
  • Applicable standards: ISO 461-2, BS 4G 173-1, VG 96966-1, MIL-C-794D

Applications

  • Connection of 400Hz ground power supply to aircraft
