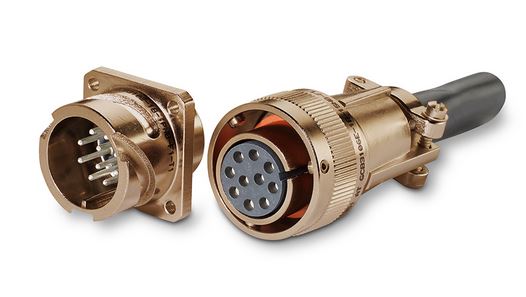

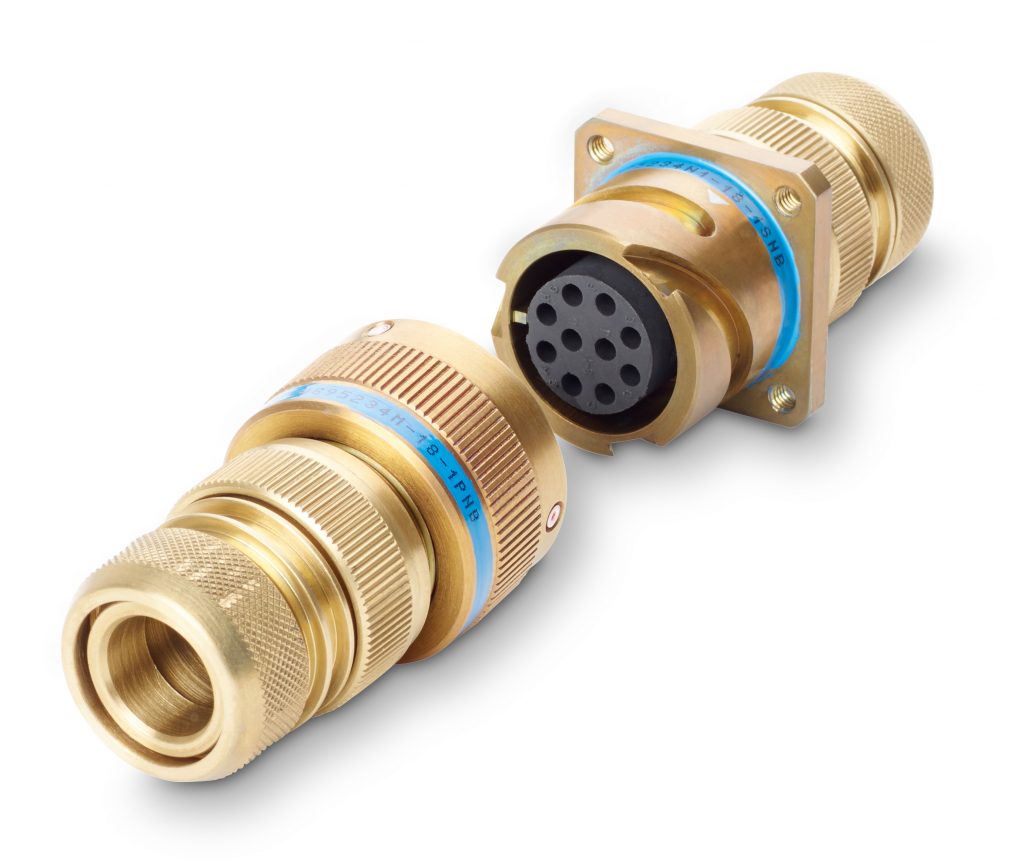

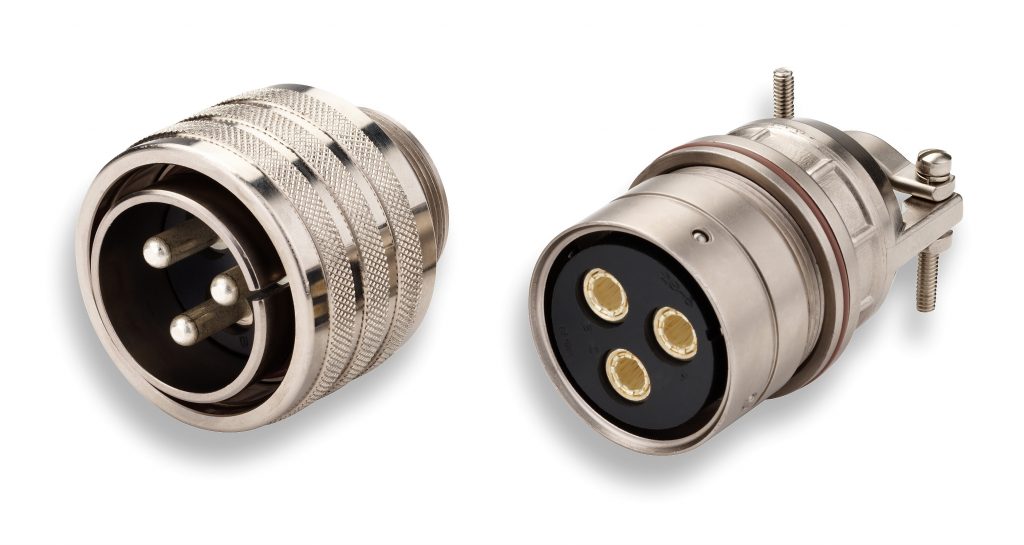

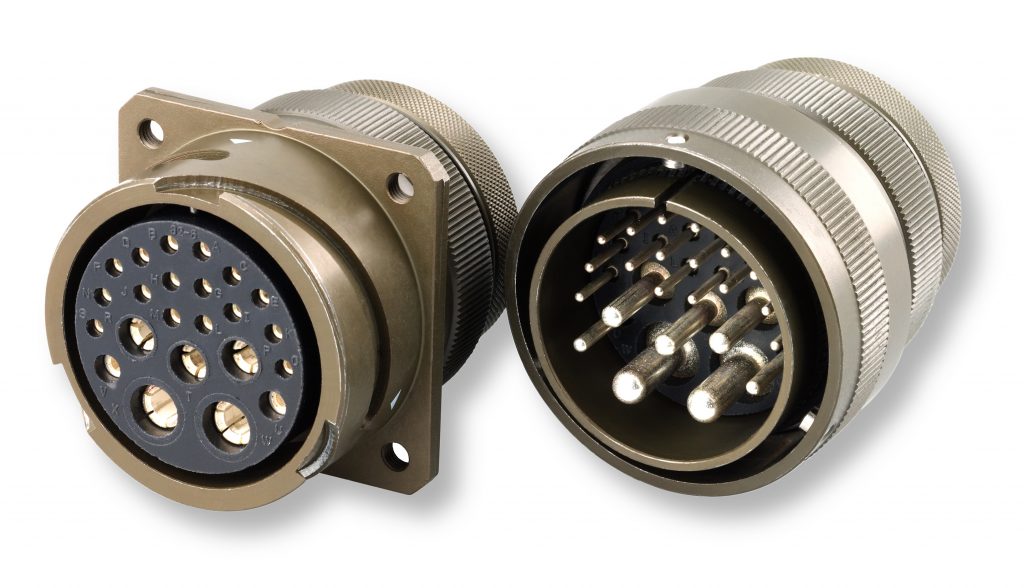

VG95234 / GCB-B Series Circular Connectors
VG95234 and GCB-B Connector
A circular connector series, offering high reliability and versatility. These connectors with reverse bayonet coupling conform to and, where appropriate, are approved to VG95234 standard. They are interchangeable with MIL-C-5015 product using the same dimensions & contact arrangement.. They are an improvement on the 5015 series.°
They are waterproof and provide exceptional wear and anti-vibration characteristics.
The proven reverse bayonet coupling with nodular washer guarantees a fast and effortless locking/unlocking action but avoids an unintentional unlatch due to heavy vibrations.
All VG95234 designs are equipped with an individual wire sealing grommet.
If VG95234 connectors are required with modifications, e.g. with solder contacts or other shell or contact plating, they are to be ordered with GCB-B designation.
GCA-B Series
The GCA-B connectors are fully interchangeable and intermateable with GCB-B connectors and offer a variety of additional arrangements that are not described in the VG95234 specifications.
They have the same technical features as GCB-B series except the contacts arrangements that have a special design.
Click here to access our online stock and quotation website.
- Mate with Mil C 5015
- Reliable and proven locking method
- VG95234 provides individual wire sealing grommet
- Options outside the VG spec are available under the GCB-B part numbering
- 8A to 245A current capacity (dependant on configuration)
- Temperature range of -55°C to +125°C
- 500 mating cycles
- Alternative ROHS plating options available
- Temperature deployment range from -55 °C to +125 °C
- Nominal current to 245 A
- Up to 3000V
- Aluminium shells
- Olive drab or other plating
Applications for the VG95234 / GCB – B Series Connectors include:
- Military
- Industrial plant
- Highways and railway vehicles
- Propulsion technologies
- Machine tools
- Robotics.
Features and Benefits
- Mate with Mil C 5015
- Reliable and proven locking method
- VG95234 provides individual wire sealing grommet
- Options outside the VG spec are available under the GCB-B part numbering
- 8A to 245A current capacity (dependant on configuration)
- Temperature range of -55°C to +125°C
- 500 mating cycles
- Alternative ROHS plating options available
Range
- Temperature deployment range from -55 °C to +125 °C
- Nominal current to 245 A
- Up to 3000V
- Aluminium shells
- Olive drab or other plating
Applications
Applications for the VG95234 / GCB – B Series Connectors include:
- Military
- Industrial plant
- Highways and railway vehicles
- Propulsion technologies
- Machine tools
- Robotics.
