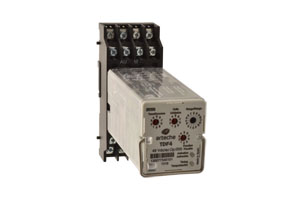

Traction Relays from Arteche

Traction Relays from Arteche

Arteche traction relays are designed for demanding and safety critical applications in the rail industry. The relays offer high reliability with a compact and lightweight design. Used throughout the UK rolling stock for GSMR, Arteche relays offer a range of solutions.

Click here to access our online stock and quotation website.

Fully compliant with all major railway specifications:

  • EN 50205.  Relays with forcibly mechanically guided contacts. Offering safety features such as Weld No Transfer contacts as standard
  • EN 60077 Series. Electric equipment for rolling stock
  • EN 50155 (IEC 60571 equivalent). Railway Applications. Electronic equipment used on rolling stock
  • IEC 61373.  Railway applications. Rolling stock equipment. Shock and vibration tests
  • EN 50121-3-2 Railway applications.  Electromagnetic compatibility rolling stock
  • RIA12.  General specification for protection of traction and rolling stock electronic equipment from transients and surges in DC control systems
  • NF F 16-101 y NF F 16-102.  Rolling stock fire behaviour
  • NF F 70-031.  Contact weld resistance tests. No weld contacts



  • Suitable for low and high current switching
  • Compact and lightweight design
  • Proven reliability
  • SIL4 rated for use in safety critical applications
  • Self-cleaning contacts
  • Operating temperature of -40°C to +70°C

The Arteche range of traction relays are designed to fulfil the most demanding requirements in the railway industry in regards to low duty loads, fire and smoke, shock and vibration etc.  With proven reliability and used throughout the UK rolling stock for GSMR, Arteche relays offer a range of solutions for your requirements.

  • Arteche offer a range of instantaneous, timed, latching and flashing relays
  • 2, 3, 4 and 8 pole relays
  • Faston or screw connection
  • Rear or panel mount
  • Configurable to your specification including front LED, mechanical indication, trip flag, push button or diode
  • Wide band coil 70% – 125% nominal voltage
  • Wide range of timing: from 0.03 to 99 h
  • Wide range of auxiliary coil voltages as standard VDC and VAC
  • Rail
  • Industrial

Features and Benefits

Fully compliant with all major railway specifications:

  • EN 50205.  Relays with forcibly mechanically guided contacts. Offering safety features such as Weld No Transfer contacts as standard
  • EN 60077 Series. Electric equipment for rolling stock
  • EN 50155 (IEC 60571 equivalent). Railway Applications. Electronic equipment used on rolling stock
  • IEC 61373.  Railway applications. Rolling stock equipment. Shock and vibration tests
  • EN 50121-3-2 Railway applications.  Electromagnetic compatibility rolling stock
  • RIA12.  General specification for protection of traction and rolling stock electronic equipment from transients and surges in DC control systems
  • NF F 16-101 y NF F 16-102.  Rolling stock fire behaviour
  • NF F 70-031.  Contact weld resistance tests. No weld contacts



  • Suitable for low and high current switching
  • Compact and lightweight design
  • Proven reliability
  • SIL4 rated for use in safety critical applications
  • Self-cleaning contacts
  • Operating temperature of -40°C to +70°C

Range

The Arteche range of traction relays are designed to fulfil the most demanding requirements in the railway industry in regards to low duty loads, fire and smoke, shock and vibration etc.  With proven reliability and used throughout the UK rolling stock for GSMR, Arteche relays offer a range of solutions for your requirements.

  • Arteche offer a range of instantaneous, timed, latching and flashing relays
  • 2, 3, 4 and 8 pole relays
  • Faston or screw connection
  • Rear or panel mount
  • Configurable to your specification including front LED, mechanical indication, trip flag, push button or diode
  • Wide band coil 70% – 125% nominal voltage
  • Wide range of timing: from 0.03 to 99 h
  • Wide range of auxiliary coil voltages as standard VDC and VAC

Applications

  • Rail
  • Industrial
