Terminal Junction Modules

Terminal Junction Modules

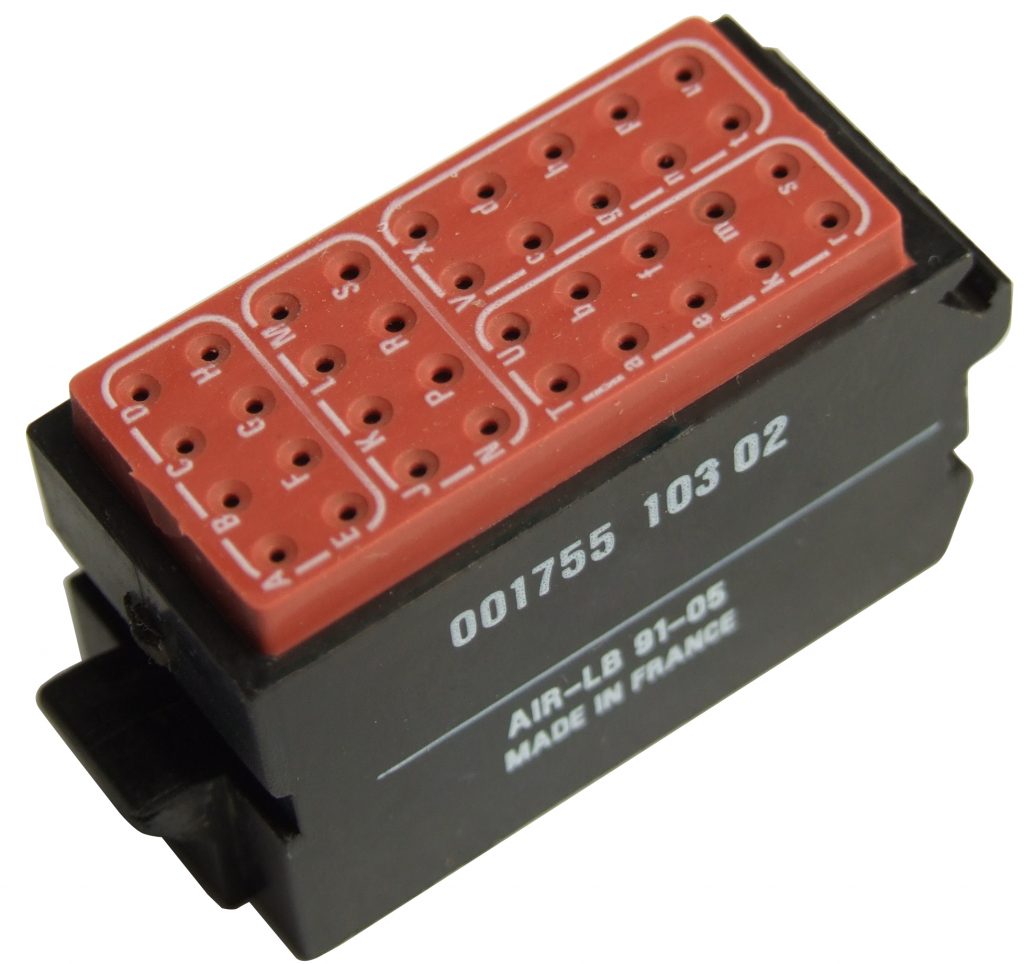

Removable distribution modules type 1755, 1756 and 1765 provide high density wiring modular connections, very high performance, along with easy and fast installation. They can be inserted and extracted without special tools, individually or all along the rail which locks each module in place.

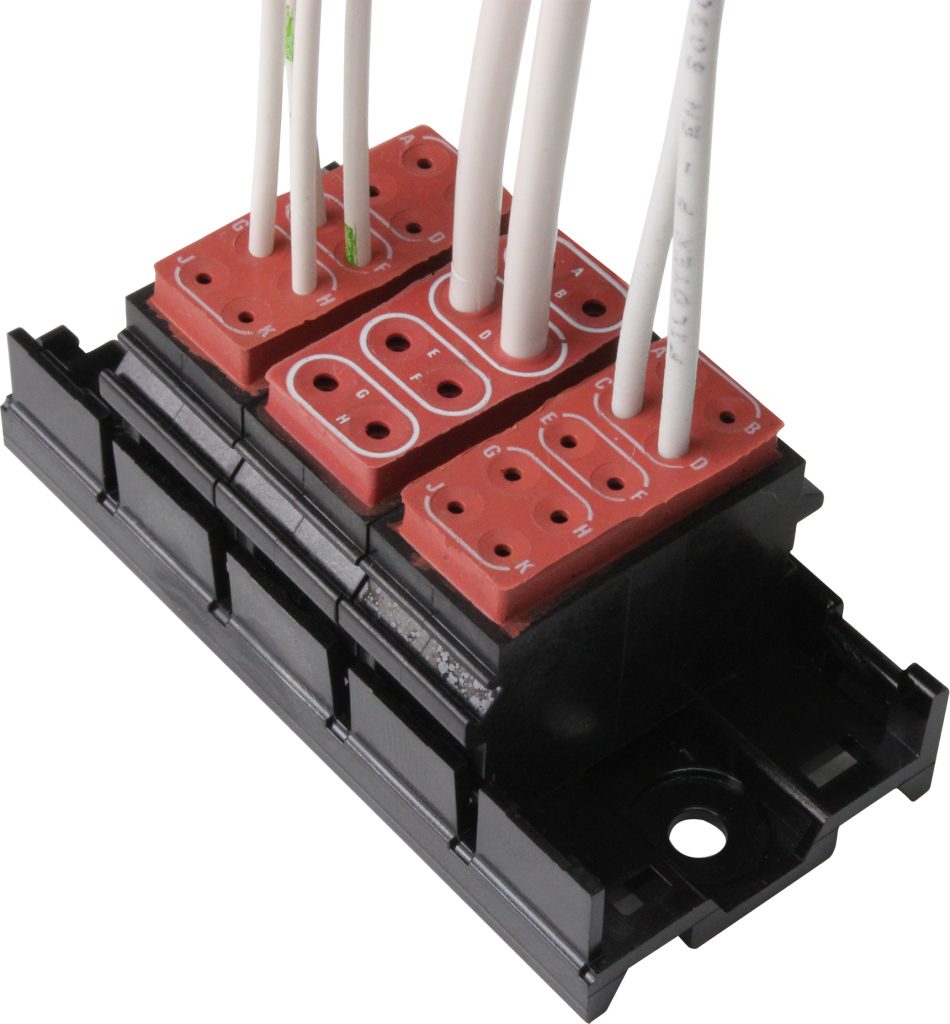

The modules can be changed at any time without removing the adjacent modules and the rail is available in metal or lightweight composite material. All modules have the same pitch of .5551 inch.

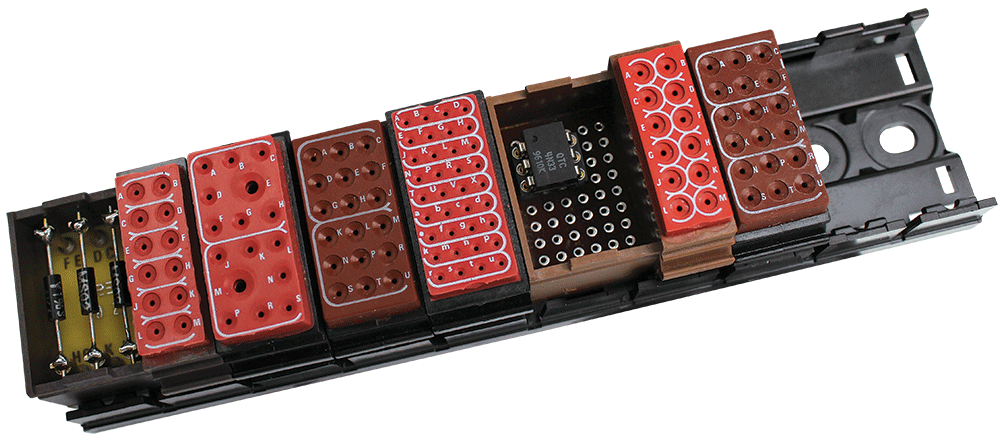

These modules can be assembled on the same rail with feedback modules, mixed modules, with inserted diodes and terminal junction blocks (BJT).

We can supply multiple types suitable for different environments and contaminants.

Click here to access our online stock and quotation website.
  • Broad range of interconnection layouts available in all sizes, including mixed
  • Modules from 6 to 36 contacts, size 10 to 22
  • Mounting on lightweight composite or metallic rail
  • Sealing of the modules is ensured by a patented over moulded grommet
  • Sealed to IP66
  • Easy insert and removal from the rail without special tools, and without removing the adjacent modules
  • Crimp contacts P sizes 22 – 20 – 16 – 12 and 10, from 26 to 8 AWG (for cable sections from 0,15 to 8,98 mm²)
  • Contacts inserted or extracted with standard tools
  • Suitable for various protocols such as Canbus
  • Grounding modules with incorporated diodes, mixed modules and modules to be soldered onto the PCB
  • Crimp male contacts comply with NF L 53-105, NAS 1749 and EN 3155-016 standards
  • Feed through modules and rails
  • Power junction blocks with stud terminals Ø5 or Ø8
  • Junction blocks for fuses and diodes
  • ROHS and REACH compliant.
  • Operating temperature Range of -55°C to +175°C
  • Endurance 1000h at +175°C
  • Salt resistant
  • Contact rating 5A to 23A
  • Stud terminals up to 125A
  • Fluid resistant to UTE C93-462
  • Grounding versions available
  • Electrical shunts available
  • Devices with built in electronics
  • Range of materials for different environments, i.e.fuel, aircraft, rail
  • Aerospace – civil and military
  • Fixed and rotary wing aircraft
  • Marine
  • Rail
  • Industrial

Features and Benefits

  • Broad range of interconnection layouts available in all sizes, including mixed
  • Modules from 6 to 36 contacts, size 10 to 22
  • Mounting on lightweight composite or metallic rail
  • Sealing of the modules is ensured by a patented over moulded grommet
  • Sealed to IP66
  • Easy insert and removal from the rail without special tools, and without removing the adjacent modules
  • Crimp contacts P sizes 22 – 20 – 16 – 12 and 10, from 26 to 8 AWG (for cable sections from 0,15 to 8,98 mm²)
  • Contacts inserted or extracted with standard tools
  • Suitable for various protocols such as Canbus
  • Grounding modules with incorporated diodes, mixed modules and modules to be soldered onto the PCB
  • Crimp male contacts comply with NF L 53-105, NAS 1749 and EN 3155-016 standards
  • Feed through modules and rails
  • Power junction blocks with stud terminals Ø5 or Ø8
  • Junction blocks for fuses and diodes
  • ROHS and REACH compliant.

Range

  • Operating temperature Range of -55°C to +175°C
  • Endurance 1000h at +175°C
  • Salt resistant
  • Contact rating 5A to 23A
  • Stud terminals up to 125A
  • Fluid resistant to UTE C93-462
  • Grounding versions available
  • Electrical shunts available
  • Devices with built in electronics
  • Range of materials for different environments, i.e.fuel, aircraft, rail

Applications

  • Aerospace – civil and military
  • Fixed and rotary wing aircraft
  • Marine
  • Rail
  • Industrial
