Flanged Plugs & Sockets

Flanged Plugs & Sockets

LPA offer a range of 400Hz & 28Vdc Flanged Plugs & Sockets for the aviation market. Weatherproof to IP54 and cast aluminum alloy housing and lid.

  • Protected flange mounted 400Hz or 28Vdc connectors
  • Cast aluminium alloy housing and lid
  • Epoxy powder coated orange finish
  • Exterior material: CSPE
  • Interior manufactured to ISO 461
  • Weatherproof to IP54
  • Crimped or soldered contacts
  • Mounting boxes available

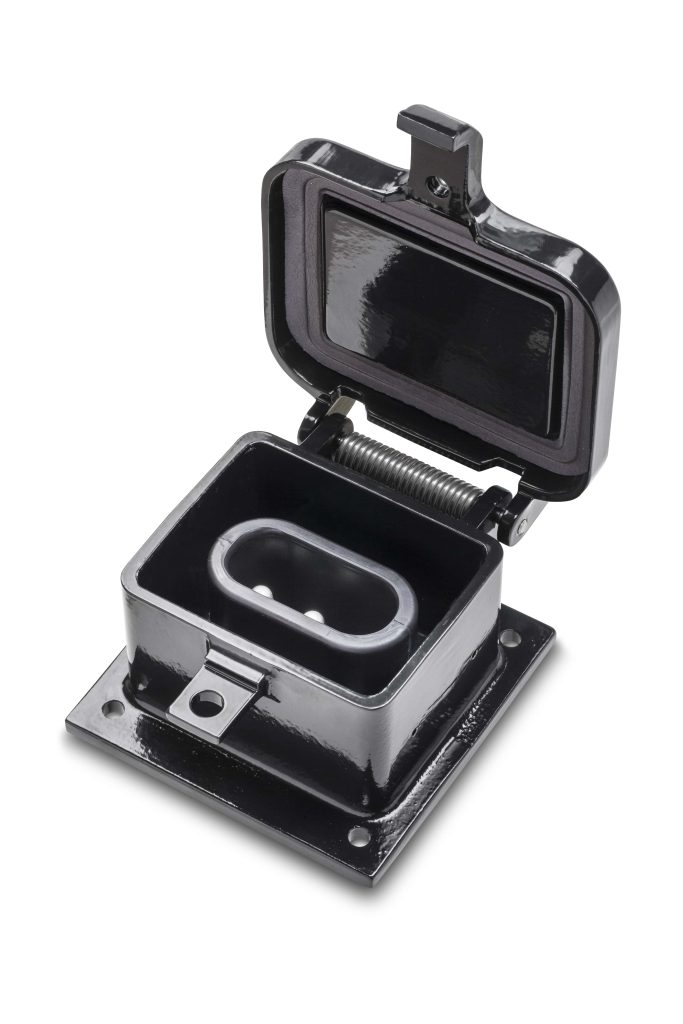

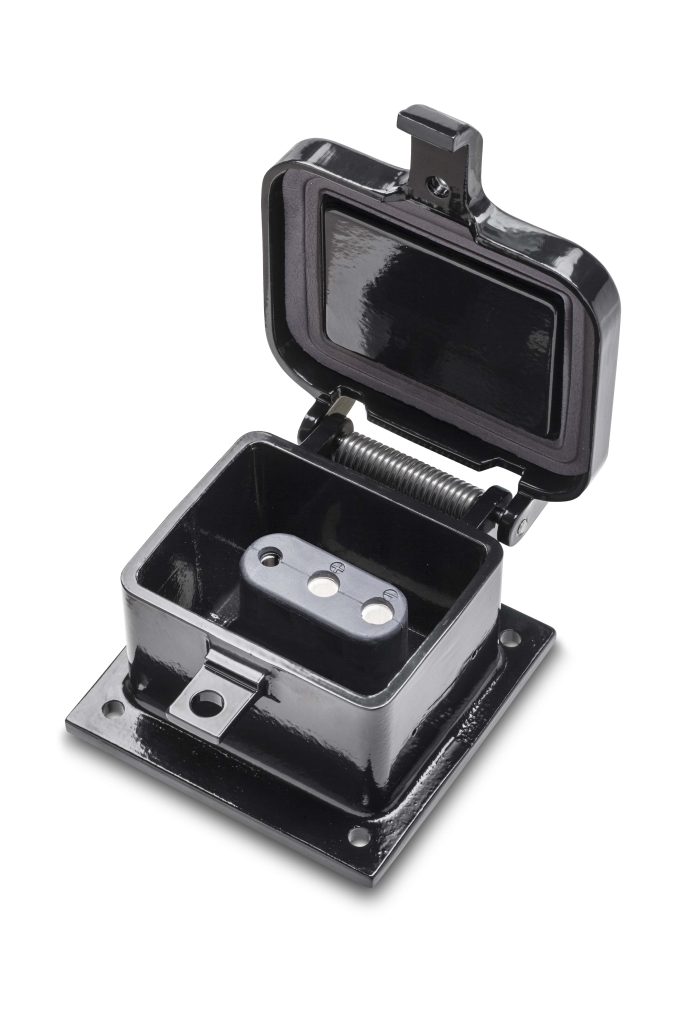

  • 28 Volt DC 3 pole Connectors

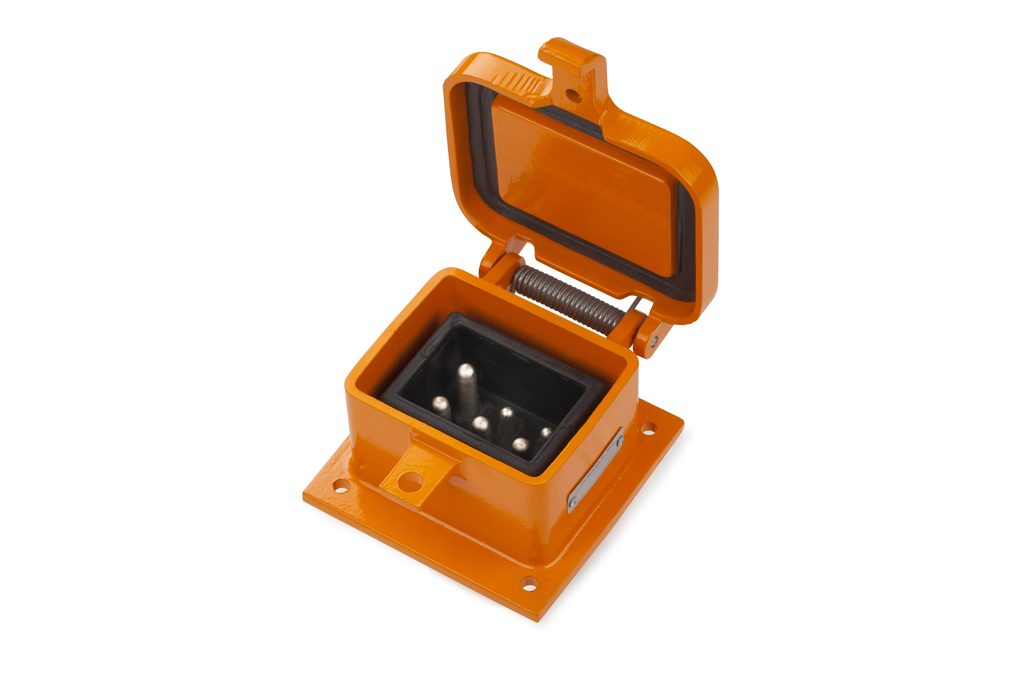

  • 115 – 200 Volt AC 400Hz 6 pole Connectors
  • Rated for 450Amps continuous current and 1500 Amps for 1 minute
  • Interior performance and dimensions to ISO 461 and BS 4G 178
  • 400Hz or 28Vdc power supply for aircraft

Features and Benefits

  • Protected flange mounted 400Hz or 28Vdc connectors
  • Cast aluminium alloy housing and lid
  • Epoxy powder coated orange finish
  • Exterior material: CSPE
  • Interior manufactured to ISO 461
  • Weatherproof to IP54
  • Crimped or soldered contacts
  • Mounting boxes available

Range

  • 28 Volt DC 3 pole Connectors
  • 115 – 200 Volt AC 400Hz 6 pole Connectors
  • Rated for 450Amps continuous current and 1500 Amps for 1 minute
  • Interior performance and dimensions to ISO 461 and BS 4G 178

Applications

  • 400Hz or 28Vdc power supply for aircraft

LPA Connection Systems is a leading electro-mechanical engineering company, based in the UK. With over 100 years of engineering experience and expertise, LPA provides an extensive range of electrical connector products and connection systems.

Light & Power House
Shire Hill
Saffron Walden
Essex
CB11 3AQ

Documentation

LPA Aircraft Support brochure
